IoT Made Easy: ESP-MicroPython-MQTT-ThingSpeak

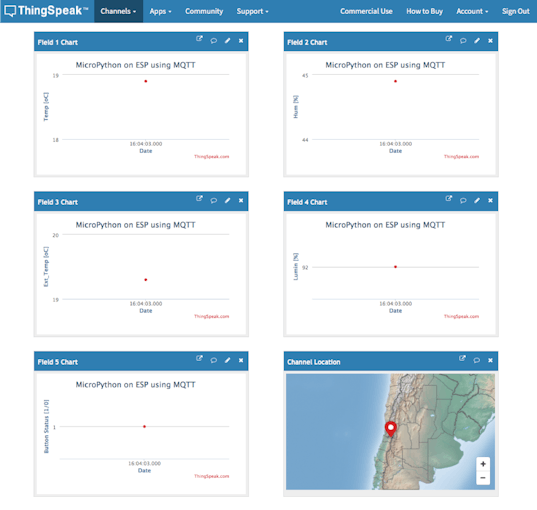

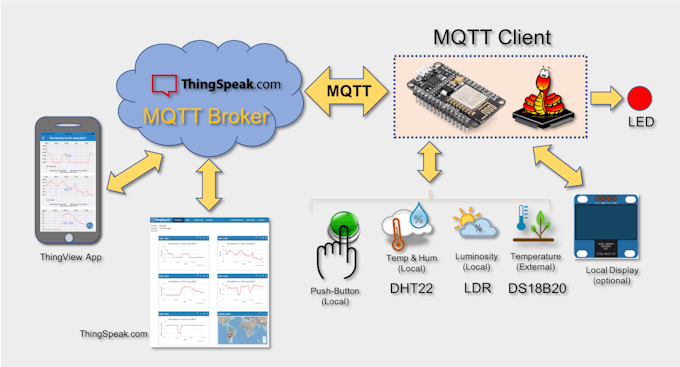

Let's create a data logger on ThingSpeak.com using an ESP programmed with MicroPython.

EasyFull instructions provided6 hours525
IoT Made Easy: ESP-MicroPython-MQTT-ThingSpeak

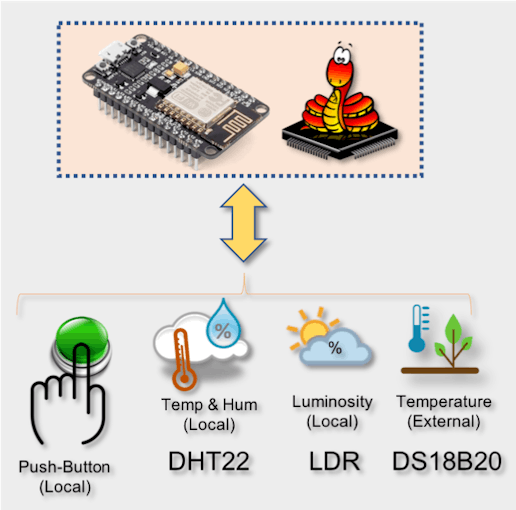

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board
NodeMCU ESP8266 Breakout Board
×1
DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1
DS18B20 Programmable Resolution 1-Wire Digital Thermometer
Maxim Integrated DS18B20 Programmable Resolution 1-Wire Digital Thermometer
×1
Grove - OLED Display 1.12'' V2
Seeed Grove - OLED Display 1.12'' V2
×1
LED (generic)
LED (generic)
×1
Pushbutton switch 12mm
SparkFun Pushbutton switch 12mm
×1

Software apps and online services

MicroPython
Jupyter Notebook
Jupyter Notebook
ThingSpeak API
ThingSpeak API
MQTT
MQTT

Story

Read more

Schematics

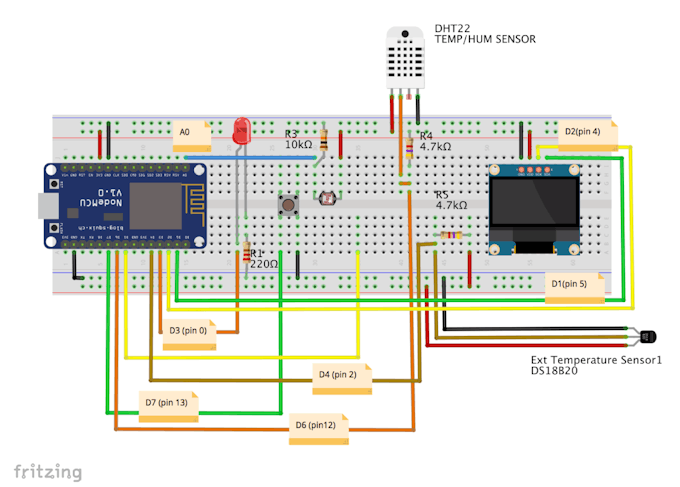

Electrical Diagram

Code

Code snippet #5

Plain text
import onewire, ds18x20
import time

# Define which pin the 1-wire device will be connected ==> pin 2 (D4)
dat = Pin(2)

# create the onewire object
ds = ds18x20.DS18X20(onewire.OneWire(dat))

Code snippet #10

Plain text
# import library
from machine import ADC

# Define object
adc = ADC(0)

Code snippet #12

Plain text
# define pin 13 as an input and activate an internal Pull-up resistor:
button = Pin(13, Pin.IN, Pin.PULL_UP)

# Function to read button state:
def readBut():
        return button.value()

Code snippet #13

Plain text
def colectData():
    temp, hum, = readDht()
    extTemp = readDs()
    lum = readLdr()
    butSts = readBut()
    return temp, hum, extTemp, lum, butSts

Code snippet #16

Plain text
# import library and create object i2c
from machine import I2C
i2c = I2C(scl=Pin(5), sda=Pin(4))

# import library and create object oled
import ssd1306
i2c = I2C(scl=Pin(5), sda=Pin(4))
oled = ssd1306.SSD1306_I2C(128, 64, i2c, 0x3c)

# create a function:
def displayData(temp, hum, extTemp, lum, butSts):
    oled.fill(0)
    oled.text("Temp:    " + str(temp) + "oC", 0, 4)
    oled.text("Hum:     " + str(hum) + "%",0, 16)
    oled.text("ExtTemp: " + str(extTemp) + "oC", 0, 29)
    oled.text("Lumin:   " + str(lum) + "%", 0, 43)
    oled.text("Button:  " + str(butSts), 0, 57)
    oled.show()

# display data using the function
displayData(temp, hum, extTemp, lum, butSts)

Code snippet #17

Plain text
# Main function to read all sensors
def main():
    # display data with a function
    led.on()
    temp, hum, extTemp, lum, butSts = colectData()
    displayData(temp, hum, extTemp, lum, butSts)
    led.off()

Code snippet #18

Plain text
# import general libraries
from machine import Pin
import time

# define pin 0 as output
led = Pin(0, Pin.OUT)

# DHT
from dht import DHT22
dht22 = DHT22(Pin(12))

# Function to read DHT
def readDht():
    dht22.measure()
    return dht22.temperature(), dht22.humidity()

# DS18B20
import onewire, ds18x20

# Define which pin the 1-wire device will be connected ==> pin 2 (D4)
dat = Pin(2)

# Create the onewire object
ds = ds18x20.DS18X20(onewire.OneWire(dat))

# scan for devices on the bus
sensors = ds.scan()

# function to read DS18B20
def readDs():
    ds.convert_temp()
    time.sleep_ms(750)
    return round(ds.read_temp(sensors[0]), 1)

# LDR
from machine import ADC

# Define object
adc = ADC(0)

#function to read luminosity
def readLdr():
    lumPerct = (adc.read()-40)*(10/86) # convert in percentage ("map")
    return round(lumPerct)

# define pin 13 as an input and activate an internal Pull-up resistor:
button = Pin(13, Pin.IN, Pin.PULL_UP)

# Function to read button state:
def readBut():
        return button.value()

# Function to read all data:
def colectData():
    temp, hum, = readDht()
    extTemp = readDs()
    lum = readLdr()
    butSts = readBut()
    return temp, hum, extTemp, lum, butSts

# import library and create object i2c
from machine import I2C
i2c = I2C(scl=Pin(5), sda=Pin(4))

# import library and create object oled
import ssd1306
i2c = I2C(scl=Pin(5), sda=Pin(4))
oled = ssd1306.SSD1306_I2C(128, 64, i2c, 0x3c)

# create a function:
def displayData(temp, hum, extTemp, lum, butSts):
    oled.fill(0)
    oled.text("Temp:    " + str(temp) + "oC", 0, 4)
    oled.text("Hum:     " + str(hum) + "%",0, 16)
    oled.text("ExtTemp: " + str(extTemp) + "oC", 0, 29)
    oled.text("Lumin:   " + str(lum) + "%", 0, 43)
    oled.text("Button:  " + str(butSts), 0, 57)
    oled.show()

# Main function to read all sensors
def main():
    # display data with a function
    led.on()
    temp, hum, extTemp, lum, butSts = colectData()
    displayData(temp, hum, extTemp, lum, butSts)
    led.off()


'''------ run main function --------'''
main()

Code snippet #22

Plain text
# loop getting data until button is pressed
while button.value():
        led.on()
        temp, hum, extTemp, lum, butSts = colectData()
        displayData(temp, hum, extTemp, lum, butSts)
        led.off()
        time.sleep(PUB_TIME_SEC)

Code snippet #23

Plain text
# Clear display :
def displayClear():
    oled.fill(0)
    oled.show()

    # create a blink function
def blinkLed(num):
    for i in range(0, num):
        led.on()
        sleep(0.5)
        led.off()
        sleep(0.5)

Code snippet #24

Plain text
while button.value():
        led.on()
        temp, hum, extTemp, lum, butSts = colectData()
        displayData(temp, hum, extTemp, lum, butSts)
        led.off()
        time.sleep(PUB_TIME_SEC)
blinkLed(3)
displayClear()

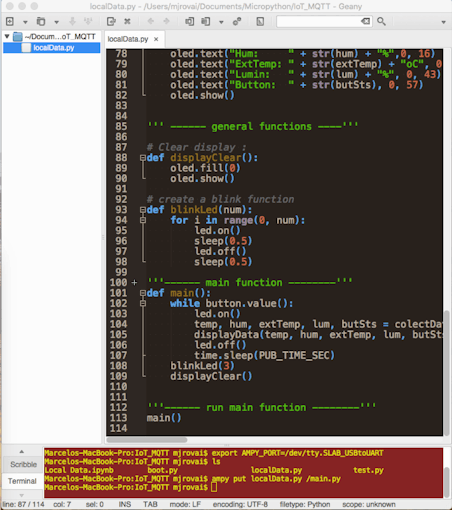

Code snippet #26

Plain text

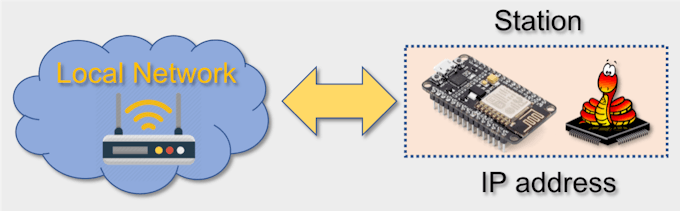

def do_connect():
    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    if not wlan.isconnected():
        print('connecting to network...')
        wlan.connect(WiFi_SSID, WiFi_SSID)
        while not wlan.isconnected():
            pass
    print('network config:', wlan.ifconfig())

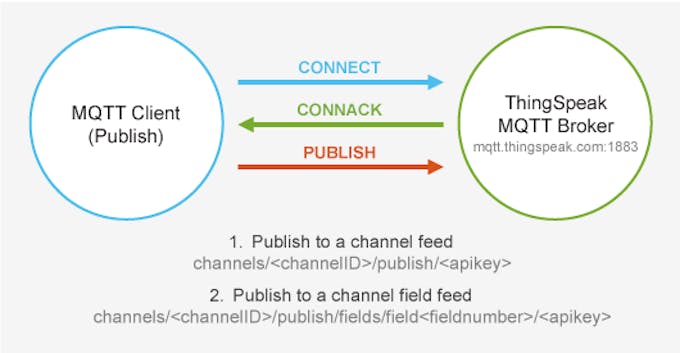

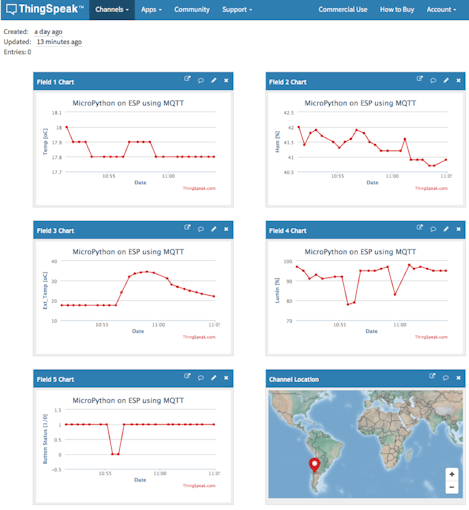

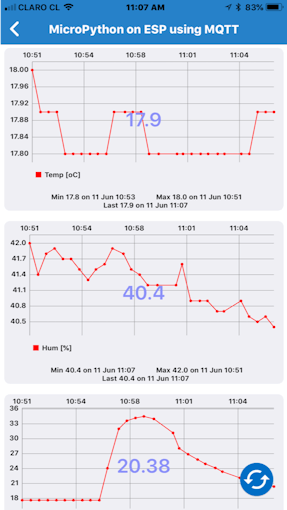

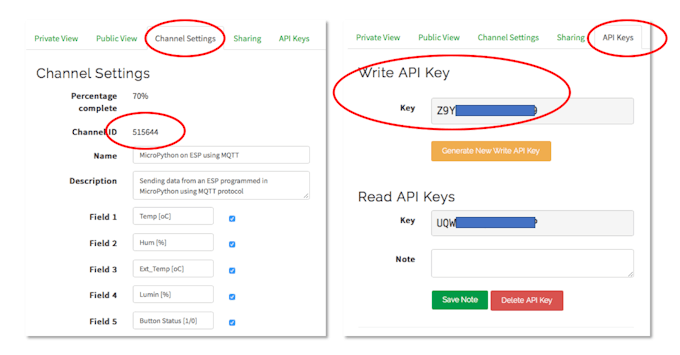

Code snippet #35

Plain text
while True:
    temp, hum, extTemp, lum, butSts = colectData()
    payload = "field1="+str(temp)+"&field2="+str(hum)+"&field3="+str(extTemp)+"&field4="+str(lum)+"&field5="+str(butSts)
    client.connect()
    client.publish(topic, payload)
    client.disconnect()
    time.sleep(PUB_TIME_SEC)

Code snippet #36

Plain text
while button.value():
        led.on()
        temp, hum, extTemp, lum, butSts = colectData()
        displayData(temp, hum, extTemp, lum, butSts)
        led.off()

        temp, hum, extTemp, lum, butSts = colectData()
        payload = "field1="+str(temp)+"&field2="+str(hum)+"&field3="+str(extTemp)+"&field4="+str(lum)+"&field5="+str(butSts)
        client.connect()
        client.publish(topic, payload)
        client.disconnect()

        time.sleep(PUB_TIME_SEC)
blinkLed(3)
displayClear()

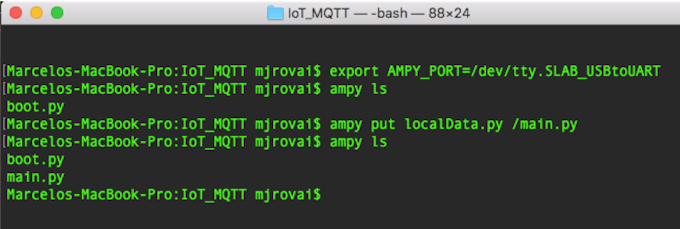

Github

https://github.com/Mjrovai/Python4DS/blob/master/Micropython/IoT_TS_MQTT/localData.py

Github

https://github.com/micropython/micropython-lib/tree/master/umqtt.simple
