Home Automation System

IoT and Cloud - Combine these potential technologies to effectuate an automation system at home!

IntermediateFull instructions provided1,843
Home Automation System

Things used in this project

Hardware components

CC3200-LAUNCHXL SimpleLink CC3200 Wi-Fi LaunchPad
Texas Instruments CC3200-LAUNCHXL SimpleLink CC3200 Wi-Fi LaunchPad
×1
Grove Starter Kit for LaunchPad
Seeed Grove Starter Kit for LaunchPad
×1

Software apps and online services

Energia
Texas Instruments Energia
BlueMix
IBM BlueMix

Story

Read more

Schematics

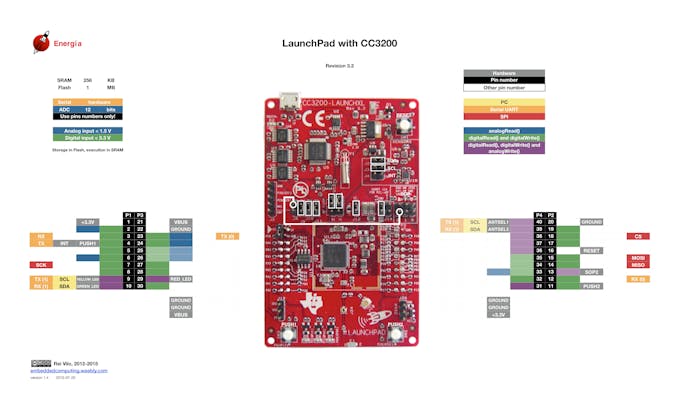

Pinout Diagram of TI CC3200 Launchpad

Launchpads cc3200 %e2%80%94 pins maps 12 28

System setup

Dsc01560

Code

Home Automation code

Arduino
#include <SPI.h>
#include <WiFi.h>
#include <WifiIPStack.h>
#include <Countdown.h>
#include <MQTTClient.h>

// your network name also called SSID
char ssid[] = "***********";
// your network password
char password[] = "***********";

// IBM Bluemix IoT Service (IoT Foundation) Cloud Settings
#define MQTT_MAX_PACKET_SIZE 100
#define IBMSERVERURLLEN  64
#define IBMIOTFSERVERSUFFIX "messaging.internetofthings.ibmcloud.com"
char organization[] = "quickstart";
char typeId[] = "iotsample-ti-energia";
char pubtopic[] = "iot-2/evt/status/fmt/json";
char deviceId[] = "000000000000";
char clientId[64];

char mqttAddr[IBMSERVERURLLEN];
int mqttPort = 1883;
MACAddress mac;

// getValue() function for cc3200
#ifdef TARGET_IS_CC3101
#include <Wire.h>
#endif

WifiIPStack ipstack;
MQTT::Client<WifiIPStack, Countdown, MQTT_MAX_PACKET_SIZE> client(ipstack);

void setup()
{
  uint8_t macOctets[6];
  Serial.begin(115200);
  // attempt to connect to Wifi network:
  Serial.print("Attempting to connect to Network named: ");
  // print the network name (SSID);
  Serial.println(ssid);
  // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
  WiFi.begin(ssid, password);
  while ( WiFi.status() != WL_CONNECTED)
  {
    // print dots while we wait to connect
    Serial.print(".");
    delay(300);
  }

  Serial.println("\nYou're connected to the network");
  Serial.println("Waiting for an ip address");

  while (WiFi.localIP() == INADDR_NONE) {
    // print dots while we wait for an ip addresss
    Serial.print(".");
    delay(300);
  }

  // We are connected and have an IP address.
  Serial.print("\nIP Address obtained: ");
  Serial.println(WiFi.localIP());

  mac = WiFi.macAddress(macOctets);
  Serial.print("MAC Address: ");
  Serial.println(mac);

  // Use MAC Address as deviceId
  sprintf(deviceId, "%02x%02x%02x%02x%02x%02x", macOctets[0], macOctets[1], macOctets[2], macOctets[3], macOctets[4], macOctets[5]);
  Serial.print("deviceId: ");
  Serial.println(deviceId);

  sprintf(clientId, "d:%s:%s:%s", organization, typeId, deviceId);
  sprintf(mqttAddr, "%s.%s", organization, IBMIOTFSERVERSUFFIX);

  Serial.println("IBM IoT Foundation QuickStart example, view data in cloud here");
  Serial.print("--> http://quickstart.internetofthings.ibmcloud.com/#/device/");
  Serial.println(deviceId);

  #ifdef TARGET_IS_CC3101
  if (!tmp006.begin())
  {
    Serial.println("No sensor found");
    while (1);
  }
  #endif

  Serial1.begin(115200);
  pinMode(29, OUTPUT);
  pinMode(30, OUTPUT);
}

void loop()
{

  int rc = -1;
  if (!client.isConnected())
  {
    Serial.print("Connecting to ");
    Serial.print(mqttAddr);
    Serial.print(":");
    Serial.println(mqttPort);
    Serial.print("With client id: ");
    Serial.println(clientId);

    while (rc != 0)
    {
      rc = ipstack.connect(mqttAddr, mqttPort);
    }

    MQTTPacket_connectData connectData = MQTTPacket_connectData_initializer;
    connectData.MQTTVersion = 3;
    connectData.clientID.cstring = clientId;

    rc = -1;
    while ((rc = client.connect(connectData)) != 0);
    Serial.println("Connected\n");
  }


  char json[56] = "{\"d\":{\"myName\":\"TI CC3200 Value\",\"Unit\":";

  dtostrf(getValue(),1,2, &json[43]);
  json[48] = '}';
  json[49] = '}';
  json[50] = '\0';
  Serial.print("Publishing: ");
  Serial.println(json);
  MQTT::Message message;
  message.qos = MQTT::QOS0;
  message.retained = false;
  message.payload = json;
  message.payloadlen = strlen(json);
  rc = client.publish(pubtopic, message);
  if (rc != 0)
  {
    Serial.print("Message publish failed with return code : ");
    Serial.println(rc);
  }

  // Wait for one second before publishing again
  client.yield(1000);
   while(Serial1.available())
  {
   int BluetoothData = Serial1.read();
    switch (BluetoothData)
    { // if number 1 pressed ....
      case '1': digitalWrite(29, 1);
        Serial1.println("FAN is turned on "); break;

      case '2': digitalWrite(29, 0);
        Serial1.println("FAN is turned off "); break;


      case '4': digitalWrite(30, 1);
        Serial1.println("LIGHT is turned on "); break;

      case '5': digitalWrite(30, 0);
        Serial1.println("LIGHT is turned off "); break;
    }
    delay(100);
}


#if defined(TARGET_IS_CC3101)
double getValue()
{
return analogRead(23);
}
#endif
