LinkIt ONE GPS Live Tracker with Cayenne

See latitude and longitude data to Cayenne in real time using the GPS functionality of LinkIt ONE.

IntermediateFull instructions provided1 hour695
LinkIt ONE GPS Live Tracker with Cayenne

Things used in this project

Hardware components

LinkIt ONE
MediaTek Labs LinkIt ONE
×1

Software apps and online services

Cayenne
myDevices Cayenne

Story

Read more

Code

LinkIt-One-GPS-Tracker.ino

Arduino
#include <LWiFi.h>
#include <LWiFiClient.h>
#define CAYENNE_DEBUG         // Uncomment to show debug messages
#define CAYENNE_PRINT Serial  // Comment this out to disable prints and save space
#include <CayenneLWiFiWpa.h>
#include <LGPS.h>
#include "utils.h"

char token[] = "2fm04460o2";
char ssid[] = "MOVLAU";
char password[] = "l4ur3nc3.w1";

// Custom Widget
#define CAYENNE_PRINT Serial
#define VIRTUAL_PIN 1
#define LED_DIGITAL_PIN 12

gpsSentenceInfoStruct info;
char buff[256];

//----------------------------------------------------------------------
//!\brief  return position of the comma number 'num' in the char array 'str'
//!\return  char
//----------------------------------------------------------------------
static unsigned char getComma(unsigned char num,const char *str){
  unsigned char i,j = 0;
  int len=strlen(str);
  for(i = 0;i < len;i ++){
    if(str[i] == ',')
      j++;
    if(j == num)
      return i + 1;
    }
  return 0;
}

//----------------------------------------------------------------------
//!\brief convert char buffer to float
//!\return  float
//----------------------------------------------------------------------
static float getFloatNumber(const char *s){
  char buf[10];
  unsigned char i;
  float rev;

  i=getComma(1, s);
  i = i - 1;
  strncpy(buf, s, i);
  buf[i] = 0;
  rev=atof(buf);
  return rev;
}

//----------------------------------------------------------------------
//!\brief convert char buffer to int
//!\return  float
//----------------------------------------------------------------------
static float getIntNumber(const char *s){
  char buf[10];
  unsigned char i;
  float rev;

  i=getComma(1, s);
  i = i - 1;
  strncpy(buf, s, i);
  buf[i] = 0;
  rev=atoi(buf);
  return rev;
}
void parseGPGGA(const char* GPGGAstr){
  /* Refer to http://www.gpsinformation.org/dale/nmea.htm#GGA
   * Sample data: $GPGGA,123519,4807.038,N,01131.000,E,1,08,0.9,545.4,M,46.9,M,,*47
   * Where:
   *  GGA          Global Positioning System Fix Data
   *  123519       Fix taken at 12:35:19 UTC
   *  4807.038,N   Latitude 48 deg 07.038' N
   *  01131.000,E  Longitude 11 deg 31.000' E
   *  1            Fix quality: 0 = invalid
   *                            1 = GPS fix (SPS)
   *                            2 = DGPS fix
   *                            3 = PPS fix
   *                            4 = Real Time Kinematic
   *                            5 = Float RTK
   *                            6 = estimated (dead reckoning) (2.3 feature)
   *                            7 = Manual input mode
   *                            8 = Simulation mode
   *  08           Number of satellites being tracked
   *  0.9          Horizontal dilution of position
   *  545.4,M      Altitude, Meters, above mean sea level
   *  46.9,M       Height of geoid (mean sea level) above WGS84
   *                   ellipsoid
   *  (empty field) time in seconds since last DGPS update
   *  (empty field) DGPS station ID number
   *  *47          the checksum data, always begins with *
   */

  if(GPGGAstr[0] == '$'){
    int tmp;
    tmp = getComma(1, GPGGAstr);
    MyGPSPos.hour     = (GPGGAstr[tmp + 0] - '0') * 10 + (GPGGAstr[tmp + 1] - '0');
    MyGPSPos.minute   = (GPGGAstr[tmp + 2] - '0') * 10 + (GPGGAstr[tmp + 3] - '0');
    MyGPSPos.second    = (GPGGAstr[tmp + 4] - '0') * 10 + (GPGGAstr[tmp + 5] - '0');

    //get time
    sprintf(buff, "UTC time %02d:%02d:%02d", MyGPSPos.hour, MyGPSPos.minute, MyGPSPos.second);
    Serial.print(buff);
    //get lat/lon coordinates
    float latitudetmp;
    float longitudetmp;
    tmp = getComma(2, GPGGAstr);
    latitudetmp = getFloatNumber(&GPGGAstr[tmp]);
    tmp = getComma(4, GPGGAstr);
    longitudetmp = getFloatNumber(&GPGGAstr[tmp]);
    // need to convert format
    convertCoords(latitudetmp, longitudetmp, MyGPSPos.latitude, MyGPSPos.longitude);
    //get lat/lon direction
    tmp = getComma(3, GPGGAstr);
    MyGPSPos.latitude_dir = (GPGGAstr[tmp]);
    tmp = getComma(5, GPGGAstr);
    MyGPSPos.longitude_dir = (GPGGAstr[tmp]);

    //sprintf(buff, "latitude = %10.4f-%c, longitude = %10.4f-%c", MyGPSPos.latitude, MyGPSPos.latitude_dir, MyGPSPos.longitude, MyGPSPos.longitude_dir);
    //Serial.println(buff);

    //get GPS fix quality
    tmp = getComma(6, GPGGAstr);
    MyGPSPos.fix = getIntNumber(&GPGGAstr[tmp]);
    sprintf(buff, "  -  GPS fix quality = %d", MyGPSPos.fix);
    Serial.print(buff);
    //get satellites in view
    tmp = getComma(7, GPGGAstr);
    MyGPSPos.num = getIntNumber(&GPGGAstr[tmp]);
    sprintf(buff, "  -  %d satellites", MyGPSPos.num);
    Serial.println(buff);
  }
  else{
    Serial.println("No GPS data");
  }
}

//----------------------------------------------------------------------
//!\brief  Convert GPGGA coordinates (degrees-mins-secs) to true decimal-degrees
//!\return  -
//----------------------------------------------------------------------
void convertCoords(float latitude, float longitude, float &lat_return, float &lon_return){
  int lat_deg_int = int(latitude/100);    //extract the first 2 chars to get the latitudinal degrees
  int lon_deg_int = int(longitude/100);   //extract first 3 chars to get the longitudinal degrees
    // must now take remainder/60
    // this is to convert from degrees-mins-secs to decimal degrees
    // so the coordinates are "google mappable"
    float latitude_float = latitude - lat_deg_int * 100;    //remove the degrees part of the coordinates - so we are left with only minutes-seconds part of the coordinates
    float longitude_float = longitude - lon_deg_int * 100;
    lat_return = lat_deg_int + latitude_float / 60 ;      //add back on the degrees part, so it is decimal degrees
    lon_return = lon_deg_int + longitude_float / 60 ;
}

//----------------------------------------------------------------------
//!\brief  Grab GPS position from serial
//!\return  -
//----------------------------------------------------------------------
void GetGPSPos(void){
  // For one second we parse GPS data and report some key values
    Serial.println("--- LGPS loop ---");
    LGPS.getData(&info);
    //Serial.print((char*)info.GPGGA);
    parseGPGGA((const char*)info.GPGGA);

    //check fix
    //if GPS fix is OK
    if ( MyGPSPos.fix == GPS || MyGPSPos.fix == DGPS || MyGPSPos.fix == PPS ){
      //set a flag
      MyFlag.fix3D = true;
    }
    else{
      //reset flag
      MyFlag.fix3D = false;
    }

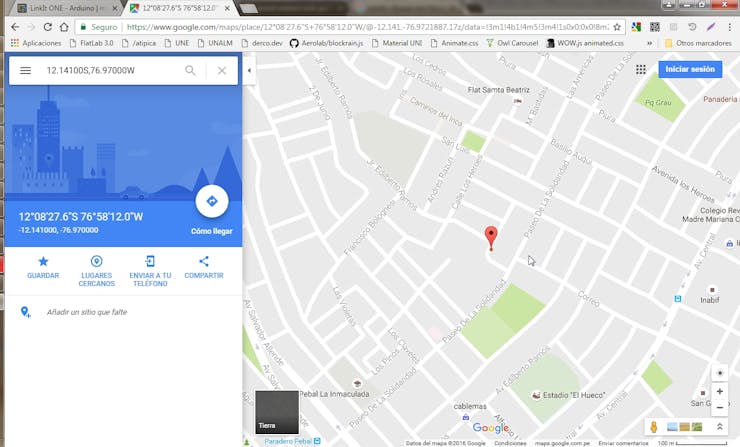

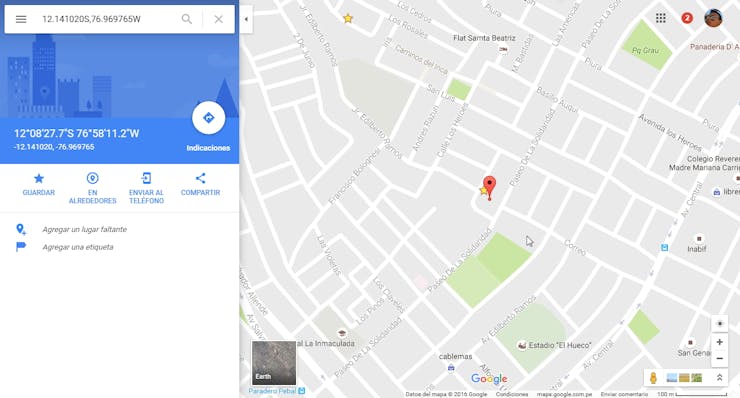

    sprintf(buff, "Current position is : https://www.google.com/maps?q=%2.6f%c,%3.6f%c", MyGPSPos.latitude, MyGPSPos.latitude_dir, MyGPSPos.longitude, MyGPSPos.longitude_dir);
    Serial.println(buff);
    Serial.println();
    int latdir;int londir;
    char ltd = MyGPSPos.latitude_dir;
    char lnd = MyGPSPos.longitude_dir;

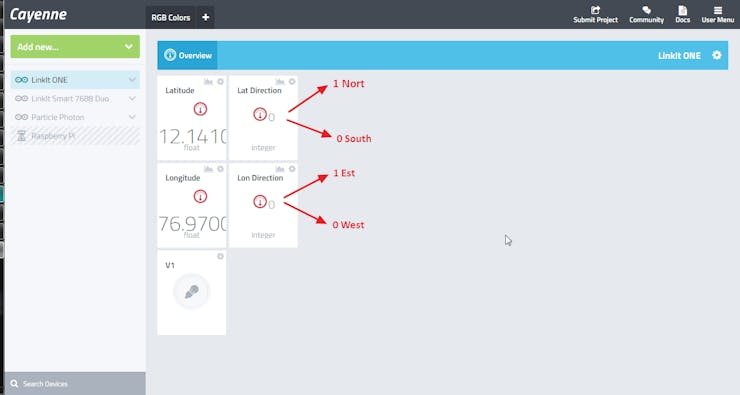

    if( ltd == "N"[0] ){ latdir = 1;}else{ latdir=0;}
    if( lnd == "E"[0] ){ londir = 1;}else{ londir=0;}

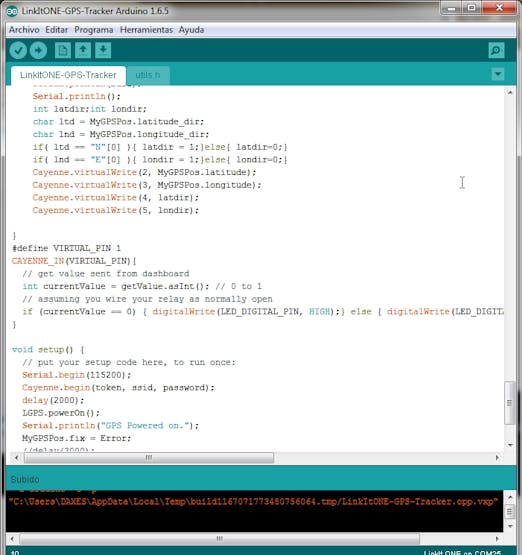

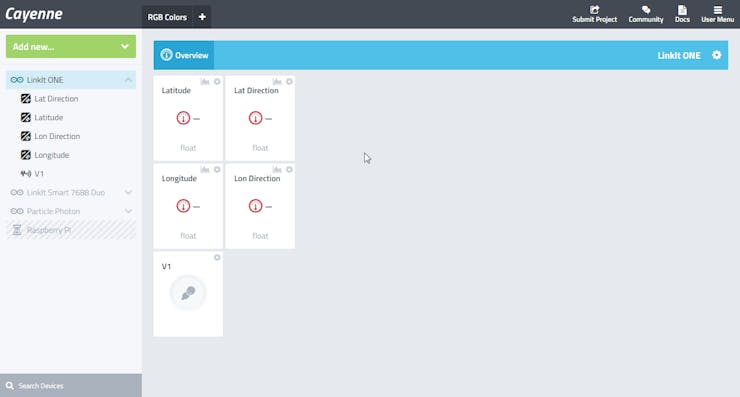

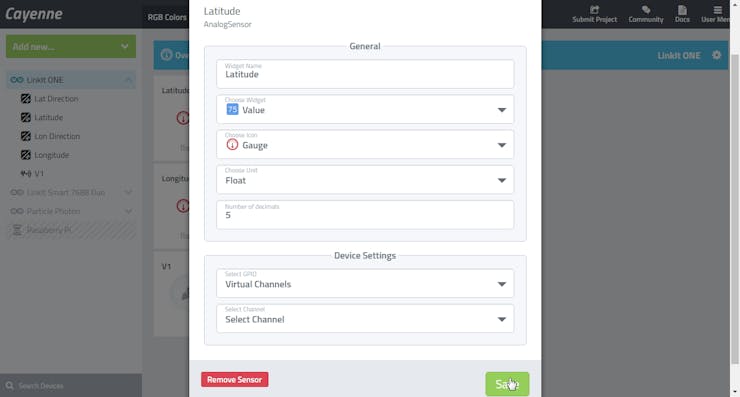

    Cayenne.virtualWrite(2, MyGPSPos.latitude);
    Cayenne.virtualWrite(3, MyGPSPos.longitude);
    Cayenne.virtualWrite(4, latdir);
    Cayenne.virtualWrite(5, londir);

}
#define VIRTUAL_PIN 1
CAYENNE_IN(VIRTUAL_PIN){
  // get value sent from dashboard
  int currentValue = getValue.asInt(); // 0 to 1
  // assuming you wire your relay as normally open
  if (currentValue == 0) { digitalWrite(LED_DIGITAL_PIN, HIGH);} else { digitalWrite(LED_DIGITAL_PIN, LOW);}
}

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  Cayenne.begin(token, ssid, password);
  delay(2000);
  LGPS.powerOn();
  Serial.println("GPS Powered on.");
  MyGPSPos.fix = Error;
  //delay(3000);
}

void loop() {
  // put your main code here, to run repeatedly:
  GetGPSPos();
  Cayenne.run();
  delay(1000);
}

utils.h

Arduino
struct GPSPos {
  float latitude;
  char latitude_dir;
  float longitude;
  char longitude_dir;
  int hour;
  int minute;
  int second;
  int num;
  int fix;
  }MyGPSPos;

 enum FixQuality {
 Invalid,  // 0
  GPS,    // 1
  DGPS,   // 2
  PPS,    // 3
  RTK,    // 4 Real Time Kinematic
  FloatRTK, // 5
  DR,     // 6 Dead Reckoning
  Manual,   // 7
  Simulation, // 8
  Error   // 9
  }GPSfix;

 struct FlagReg {
 bool taskGetGPS;  // flag to indicate when process to get GPS possition
  bool taskGetLiPo; // flag to indicate that we have to get battery level and charging status
  bool taskGetAnalog; // flag to indicate that we have to read analog input of external supply
  bool taskTestGeof;  // flag to indicate when process geofencing
  bool taskCheckSMS;  // flag to indicate when check SMS
  bool taskCheckFlood;// flag to indicate when check Flood sensor
  bool taskStatusSMS; // flat to indicate when it's time to send a periodic status SMS
  bool SMSReceived; // flag to indicate that an SMS has been received
  bool fix3D;     // flag to indicate if fix is 3D (at least) or not
  bool PosOutiseArea; // flag to indicate if fix is 3D (at least) or not
  bool taskCheckInputVoltage; // flag to indicate when do an input voltage check
  bool taskCheckFW; // flag to indicate when it's time to check if is FW hour check !
  bool ForceFWUpdate; // flag to indicate that a manual force update is asked by SMS
  }MyFlag;
