IR Remote for Fan

Turn on/off your fan without getting up, just by using an IR remote.

AdvancedFull instructions provided4 hours17

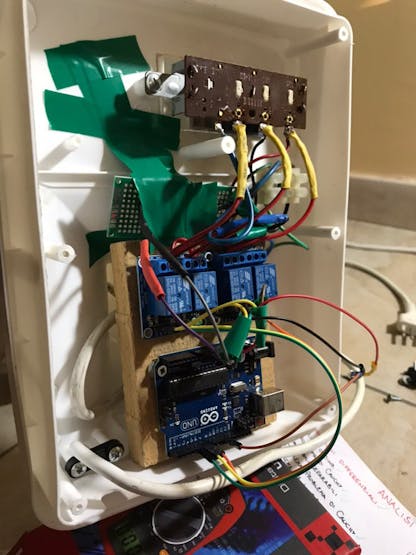

IR Remote for Fan

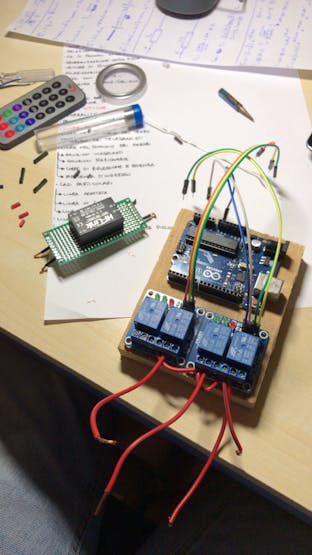

Things used in this project

Hardware components

Grove - 2-Channel SPDT Relay
Seeed Grove - 2-Channel SPDT Relay
×2
Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
IR receiver (generic)
×1
IR Remote
×1
Hi-Link HLK-PM01
×1

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Cable Cutter, 200mm
Cable Cutter, 200mm
Heat Shrinking Tube

Story

Read more

Schematics


Code

Remote.ino

Arduino
Upload this code and change "YOURCODE" with your IR Remote Code.
Example: 0x"YOURCODE" -> 0xFF30CF
#include <IRremoteInt.h>

#include <IRremote.h> // use the library
int receiver = 11; // pin 1 of IR receiver to Arduino digital pin 11
IRrecv irrecv(receiver); // create instance of 'irrecv'
decode_results results;

void setup()
{
  Serial.begin(9600); // for serial monitor output
  irrecv.enableIRIn(); // Start the receiver
  pinMode(5, OUTPUT); //IN1 of first Relay
  pinMode(6, OUTPUT); //IN2 of first Relay
  pinMode(7, OUTPUT); //IN1 of second Relay
}
void loop()
{
  if (irrecv.decode(&results)) // have we received an IR signal?
  {
    Serial.println(results.value, HEX); // display it on serial monitor in hexadecimal
    irrecv.resume();// receive the next value
  }

 //Check if other Relays are OFF before turning ON the one selected.
  if (results.value == 0x"YOURCODE1"){
    if (digitalRead(6) == LOW && digitalRead(7) == LOW) {
    digitalWrite(5, HIGH);
  }
    else if(digitalRead(6) == HIGH || digitalRead(7) == HIGH) {
      digitalWrite(6, LOW);
      digitalWrite(7, LOW);
      delay(1000); //Wait a sec just to be sure of not causing a short circuit
      digitalWrite(5, HIGH);
    }
  }

 if ( results.value == 0x"YOURCODE2"){
  if (digitalRead(5) == LOW && digitalRead(7) == LOW) {
    digitalWrite(6, HIGH);
  }
  else if(digitalRead(5) == HIGH || digitalRead(7) == HIGH) {
      digitalWrite(5, LOW);
      digitalWrite(7, LOW);
      delay(1000);
      digitalWrite(6, HIGH);
    }
 }

 if ( results.value == 0x"YOURCODE3"){
  if (digitalRead(5) == LOW && digitalRead(6) == LOW) {
    digitalWrite(7, HIGH);
  }
  else if(digitalRead(5) == HIGH || digitalRead(6) == HIGH) {
      digitalWrite(5, LOW);
      digitalWrite(6, LOW);
      delay(1000);
      digitalWrite(7, HIGH);
    }
 }

// Put here your code for turning off the Fan
 if ( results.value == 0x"YOURCODE4"){
  digitalWrite(5, LOW);
  digitalWrite(6, LOW);
  digitalWrite(7, LOW);
 }

}

Decoder.ino

Arduino
Use this code to read and store your remote's code
#include <IRremoteInt.h>

#include <IRremote.h> // use the library
int receiver = 11; // pin 1 of IR receiver to Arduino digital pin 11
IRrecv irrecv(receiver); // create instance of 'irrecv'
decode_results results;

void setup()
{
  Serial.begin(9600); // for serial monitor output
  irrecv.enableIRIn(); // Start the receiver
  pinMode(9, OUTPUT); // Pin 9 output
}
void loop()
{
  if (irrecv.decode(&results)) // have we received an IR signal?
  {
    Serial.println(results.value, HEX); // display it on serial monitor in hexadecimal
    irrecv.resume();// receive the next value
  }

}
