Smart Gate for Smart Parking

This project is about automatic doorstop and vehicle counters.

EasyProtip254
Smart Gate for Smart Parking

Things used in this project

Hardware components

Photodiode, 20 °
Photodiode, 20 °
×2
Laser Diode, Visible
Laser Diode, Visible
×2
SG90 Micro-servo motor
SG90 Micro-servo motor
×2
Grove - 16 x 2 LCD (White on Blue)
Seeed Grove - 16 x 2 LCD (White on Blue)
×1
Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Through Hole Resistor, 30 kohm
Through Hole Resistor, 30 kohm
×1
Custom PCB
Custom PCB
×1

Software apps and online services

Arduino IDE
Arduino IDE
Windows 10
Microsoft Windows 10

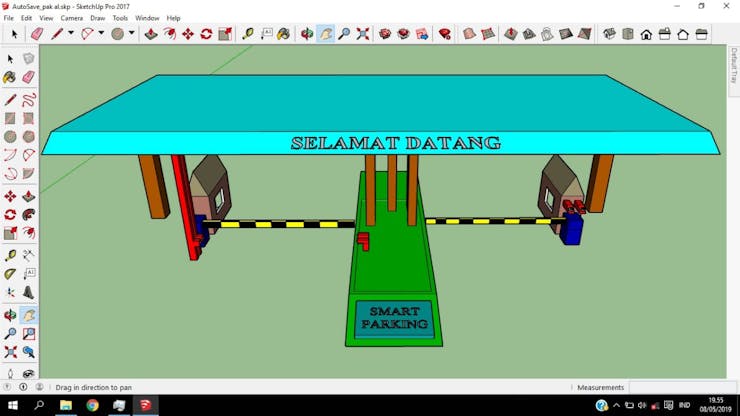

Story

Read more

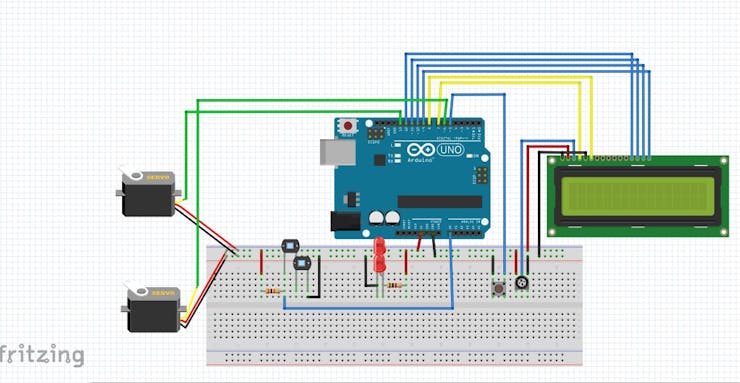

Schematics

SCHEMATICS

Frittt hiumx7ysff

SCHEMATICS

Code

Smart gate for smart parking

Arduino
#include <Servo.h>
#include <LiquidCrystal.h>
int hasil,jumlah1,total,nilai,jumlah2;
const int rs = 7, en = 8, d4 =12, d5=11, d6=10, d7=9;
LiquidCrystal lcd (rs,en,d4,d5,d6,d7);
Servo myservo;    //Inisialisasi servo 1
Servo myservo2;   //Inisialisasi servo 2

void setup() {
myservo.attach(13);   //Pin mode arduino servo 1
myservo2.attach(6);   //Pin mode arduino servo 2
Serial.begin(9600);
pinMode(5, INPUT_PULLUP);   //Pin 5 arduino sebaai input pada kondisi pull up
pinMode(A0,INPUT);
lcd.begin (16,2);
lcd.print("MIKROKONTROLER 2 ! ");
delay(1000);
lcd.clear();
lcd.setCursor(4,0);
lcd.print("Total=");
lcd.setCursor(0,1);
lcd.print("IN=");
lcd.setCursor(8,1);
lcd.print("OUT=");
}
void loop() {
  hasil=analogRead(A0);
  Serial.println(hasil);

  if (hasil > 700)
  {
    myservo.write(90);
    jumlah1++;    1
    total++;
    lcd.setCursor(4,1);
    lcd.print(jumlah1);
    lcd.setCursor(11,0);
    lcd.print(total);

    delay(7000);
    }
    else {
      myservo.write(0);
      }
if (digitalRead(5)==LOW)
  {while(digitalRead(5)==LOW){}
    total--;
    jumlah2++;
    lcd.setCursor(13,1);
    lcd.print(jumlah2);
    lcd.setCursor(11,0);
    lcd.print(total);
    myservo2.write(90);
    delay(7000);
    myservo2.write(0);
}
else { myservo2.write(0);}
    }
